LED Display
DW Series (16:9)
DW Series
Features
-

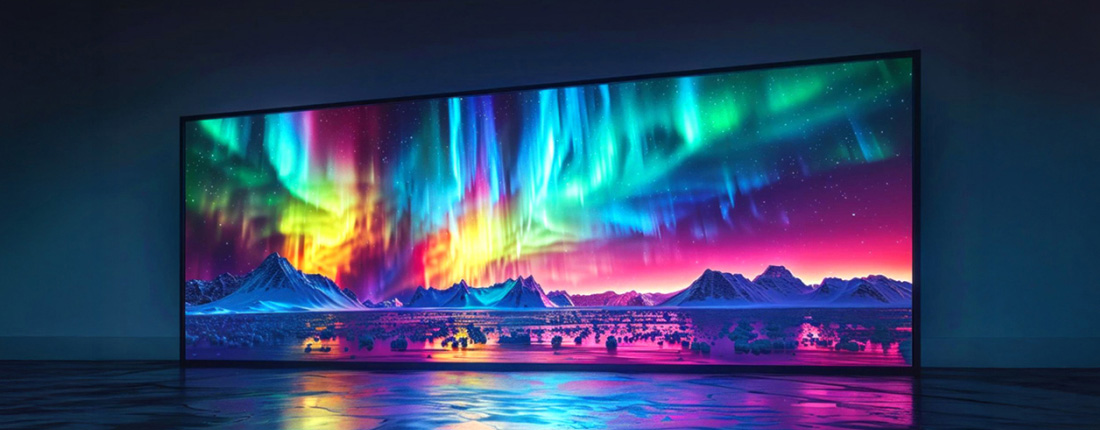

Provides an immersive viewing experience with ultimate 4K
2K, 4K, and 8K videos can be perfectly reproduced without distortion or enlargement, allowing you to enjoy clear, high-definition images and videos.
-

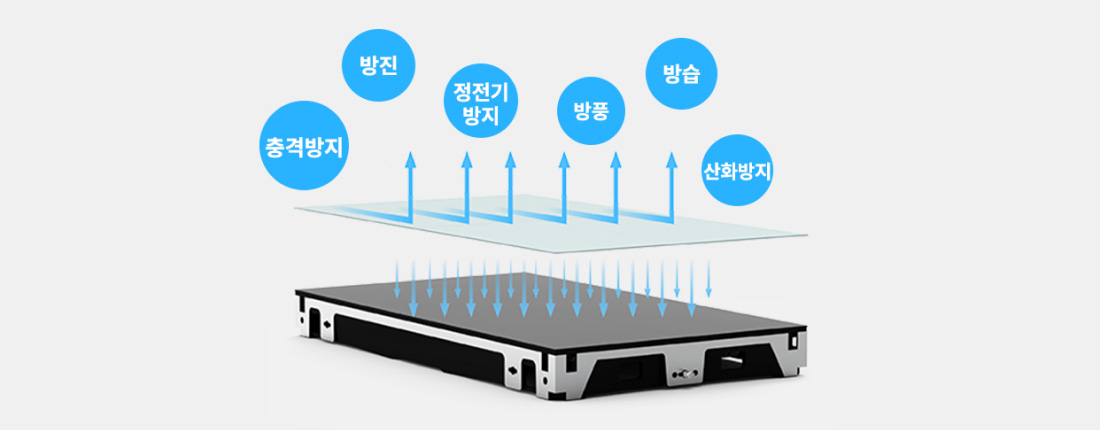

High-quality GOB coating technology
GOB coating technology provides excellent protection and stable operation, with durability and reliability that can be used in various environments.
-
Maximizing realism with color reproduction close to reality
Rich gray scale expression and delicate image content implementation provide vivid and high-quality visuals.
-
Smart energy saving
Provides a comprehensive energy saving effect of up to 30-45% through PWM-SS driver IC, dynamic energy saving technology, and 4.2V low voltage operation.
Specs
| Product Item | DW1.2 Pro | DW1.5 Pro | DW1.9 Pro | DW2.3 Pro |
|---|---|---|---|---|
| Pixel Pitch (mm) | 1.27 | 1.58 | 1.90 | 2.38 |
| Pixel Density (dots/m²) | 619414 | 396800 | 275556 | 176356 |
| Module Resolution (dots) | 240X135 | 192X108 | 160X90 | 128X72 |
| Module Size (mm) | 304.8X171.45 | |||
| Module Weight (kg) | 0.57 | 0.51 | 0.48 | 0.45 |
| Cabinet Size (inch) | 27.5 | |||
| Cabinet Resolution (dots) | 480X270 | 256X144 | ||
| Cabinet Weight (kg) | 5.9 | 5.7 | 5.6 | 5.5 |
| Horizontal Viewing Angle (°) | 140 | |||
| Pixel Structure | 1R1G1B | |||
| Driving IC | PWM-SS | |||
| Brightness (cd/m²) | ≥650 | |||
| Max Power Consumption (w/m²) | ≤380 | ≤304 | ≤285 | ≤230 |
| Average Power Consumption (w/m²) | ≤127 | ≤101 | ≤95 | ≤77 |
| Refresh Rate (Hz) | 4200 | |||
