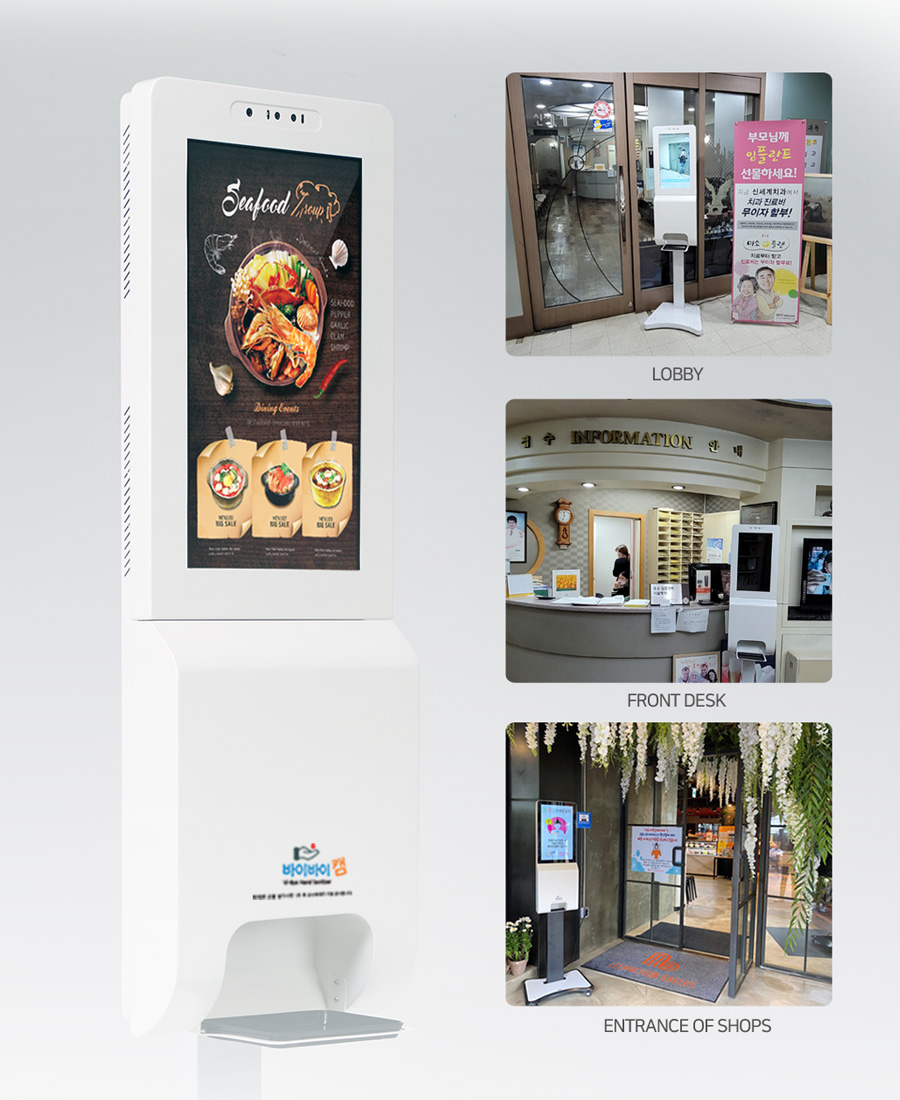

Vi-Bye Cam ASK-21- CAM

Non-face-to-face Guidance & Daily Quarantine
21.5" Smart Temperature Measure & Hand Sanitizing Kiosk

  • Temperature Measure
  • Video advertisement
  • Automatic sensor injection method

Special Features

FULL HD
Automatic sensor injection method
Thermal Imaging Cameras
Built-in speaker
WiFi
Employees registration / Absenteeism and tardiness management
PLUG & PLAY

Smart Checking System

Heat Sensing & Automatic Hand Sanitizing & Advertising All in one

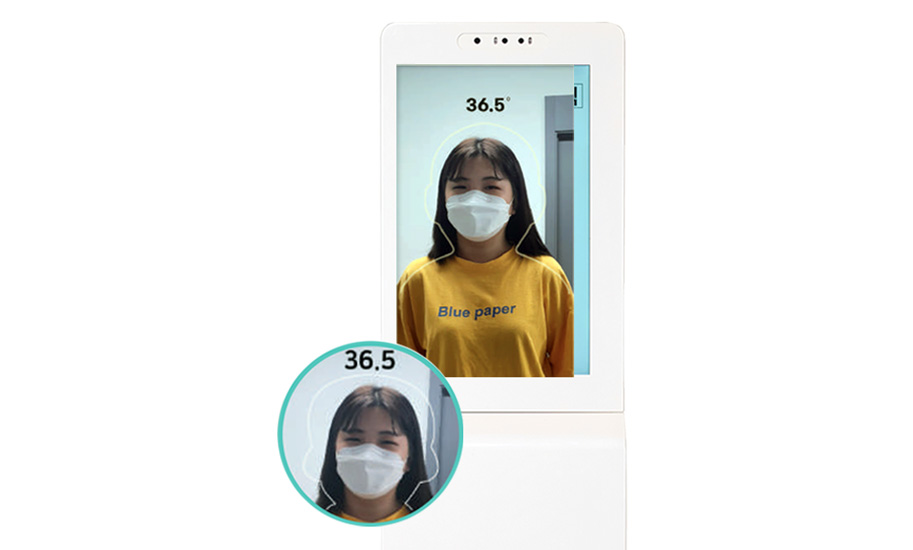

01. Facial Recognition and temperature check and Automatic Hand Sanitizing in 1 !

  • Face recognition & heat detection and mask wear status Check Function - Request to wear Mask when not wearing the mask The role of screening to fine fever as the primary barrier to quarantine with the support of request phrases and voice guidance.
Facial Recognition and temperature check and Automatic Hand Sanitizing in 1 ! With contactless automatic sensor function suitable for hygiene

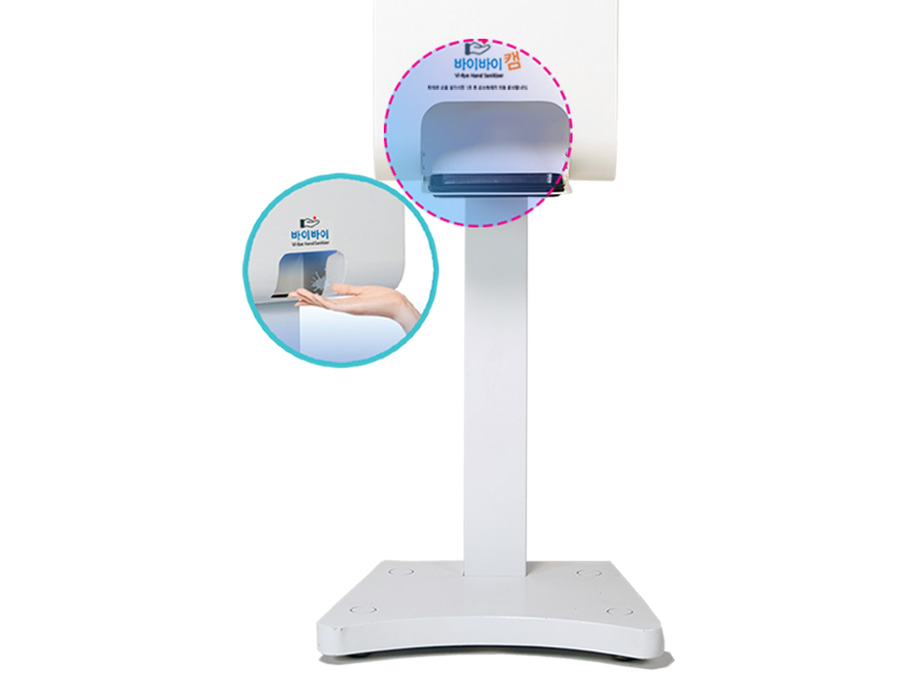

02. With contactless automatic sensor function suitable for hygiene

  • It can be sterilized without touch, preventing secondary infections Disinfectant - supports both liquid and gel types
Facial Recognition and temperature check and Automatic Hand Sanitizing in 1 ! With contactless automatic sensor function suitable for hygiene

03. An effective imaging system for information delivery.
Easy system control (USB type)

  • It is easy to expose images and images with the Plug & Play method
  • Usually, you can expose images, images, etc., and when the product recognizes a person, it automatically checks the temperature

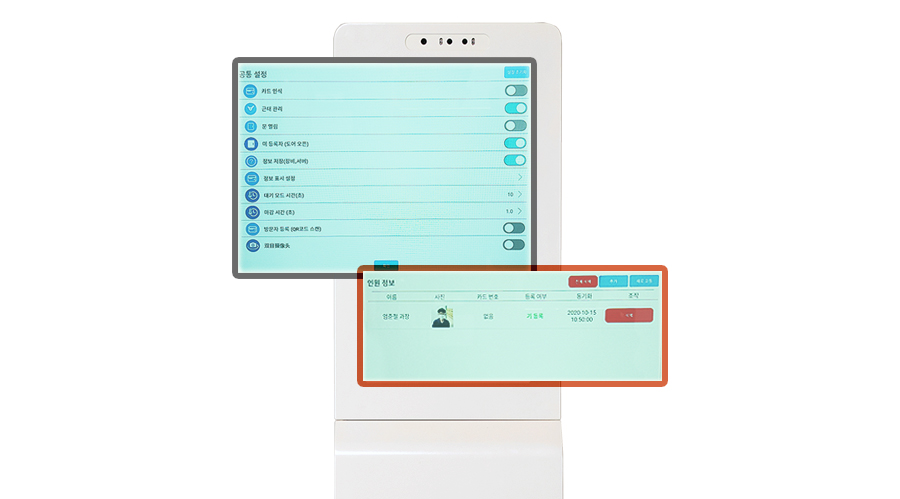

04. Access Control System
Employees registration / Absenteeism and tardiness management possible

  • It provides voice support for the results of measurement, warning sound, and mask wearing, and database of information of entrants to make it easier to manage visitors.
근태관리 이미지

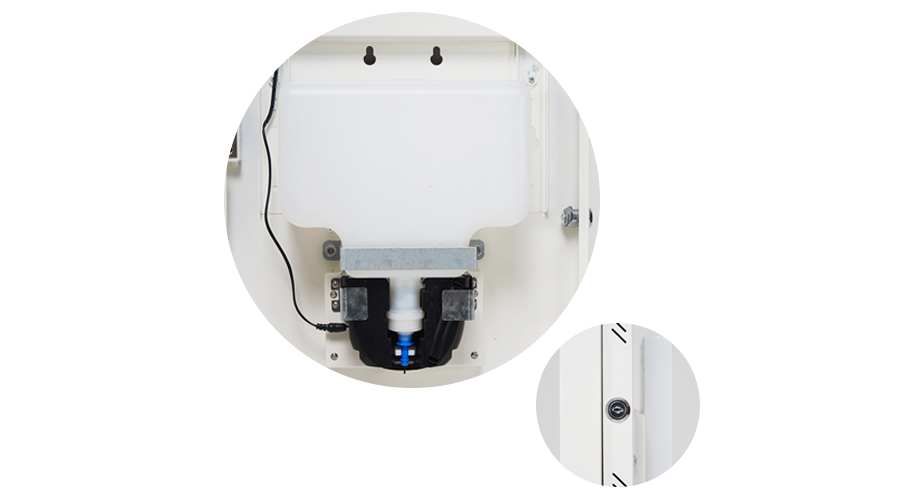

05. with easy maintenance Convenient use environment

  • Easy Refill
  • Easy-to-use lock
  • Built-in speaker
  • Power ON/OFF Timer Function

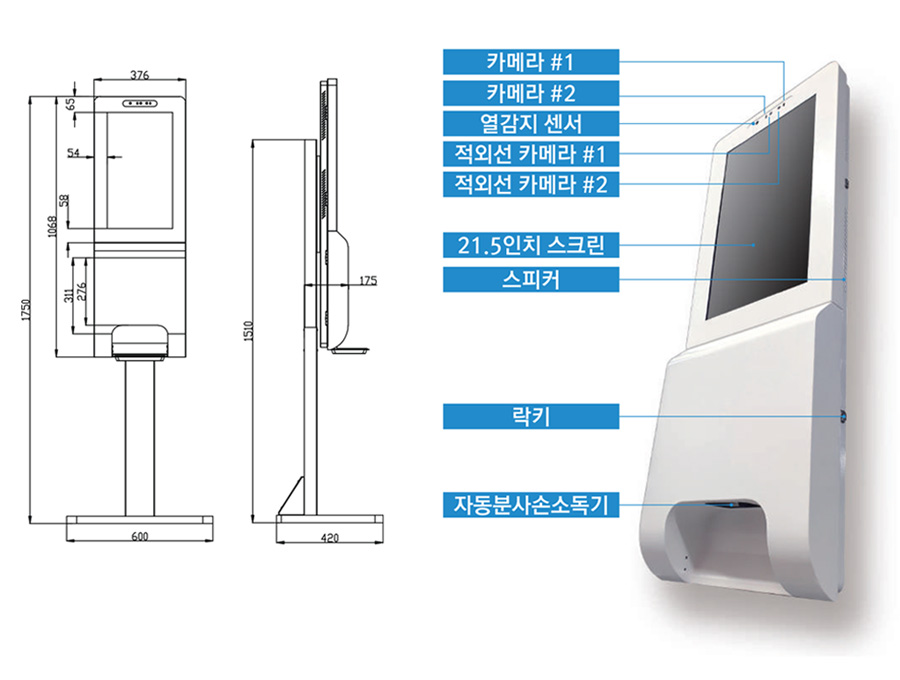

  • Selection - wall-mounted type and stand type
with easy maintenance Convenient use environment 이미지

06. Additions

  • Identification distance up to 2m (Recommended face recognition distance within 1.5m)
  • User Registration Personnel (Up to 30,000 people can compare databases)
  • Determining whether to wear a mask (Entrance control setting check function when not used)

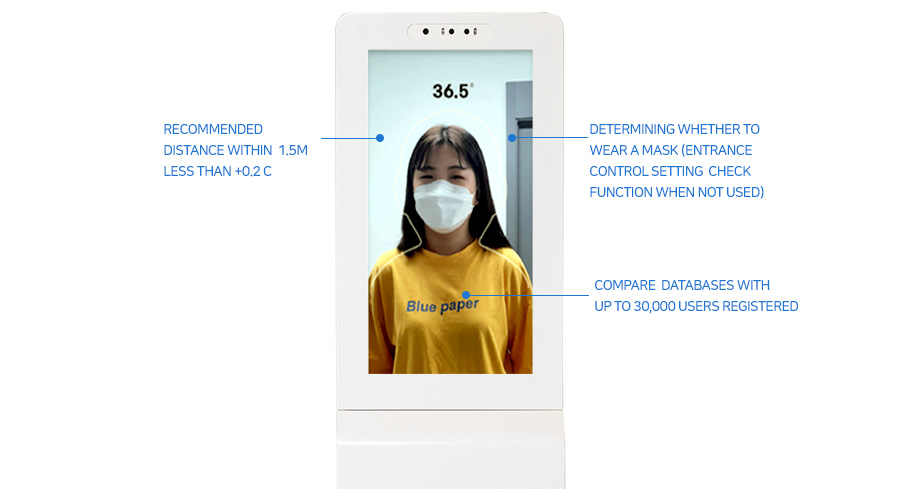

Recommended distance within  1.5M Less than +0.2 c / Determining whether to wear a mask (Entrance control setting check function when not used) / Compare  databases with up to 30,000 users registered

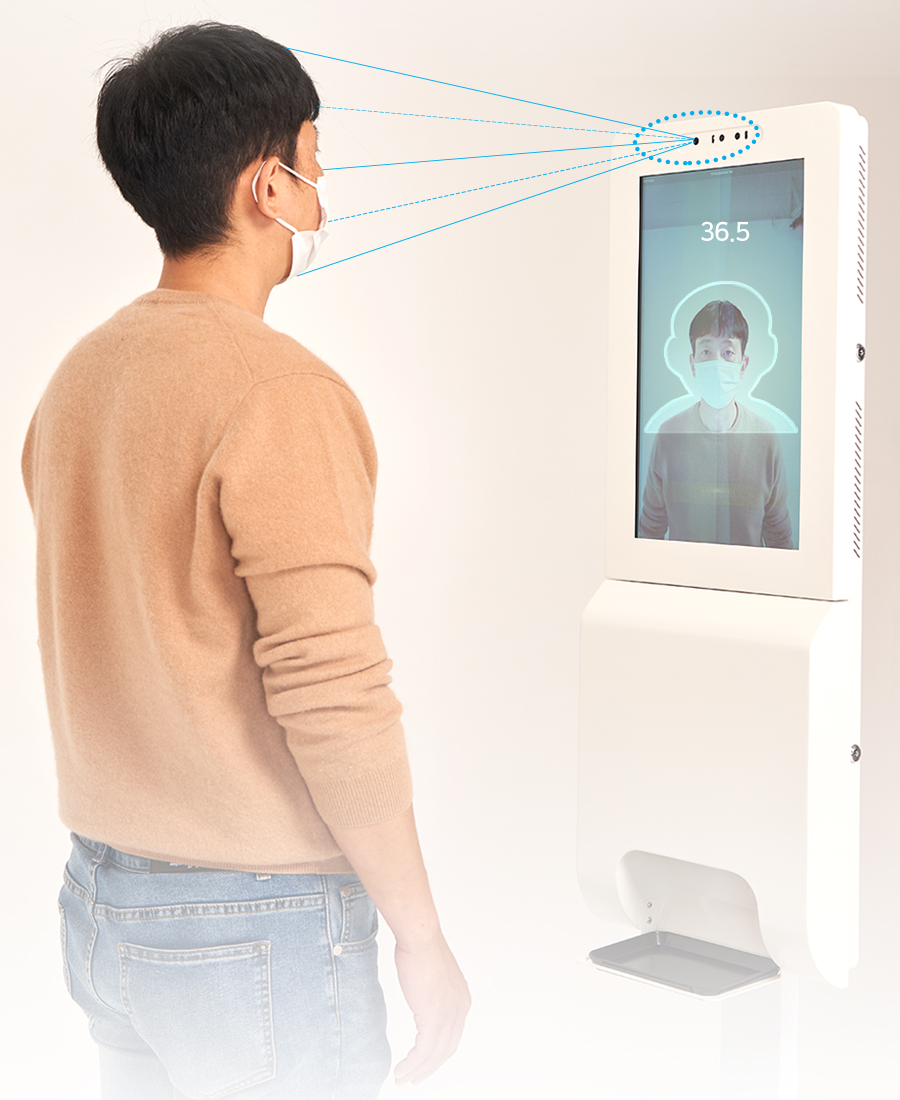

Real time thermal monitoring and non-face-to-face heat detection with

Smart smart thermal imaging cameras

How to Use Temperature Detection System (Automatic execution when power-on)

  • Look straight ahead to the recognition line.
  • Measurements will be completed in 1 to 3 seconds.
  • When not wearing a mask, the statement requesting to wear the mask and voice guidance are automatically provided.
발열감지시스템

An effective imaging system for information delivery

Usually, you can expose images, images, etc., and when the product recognizes a person, it automatically checks for heat.

영상표출시스템

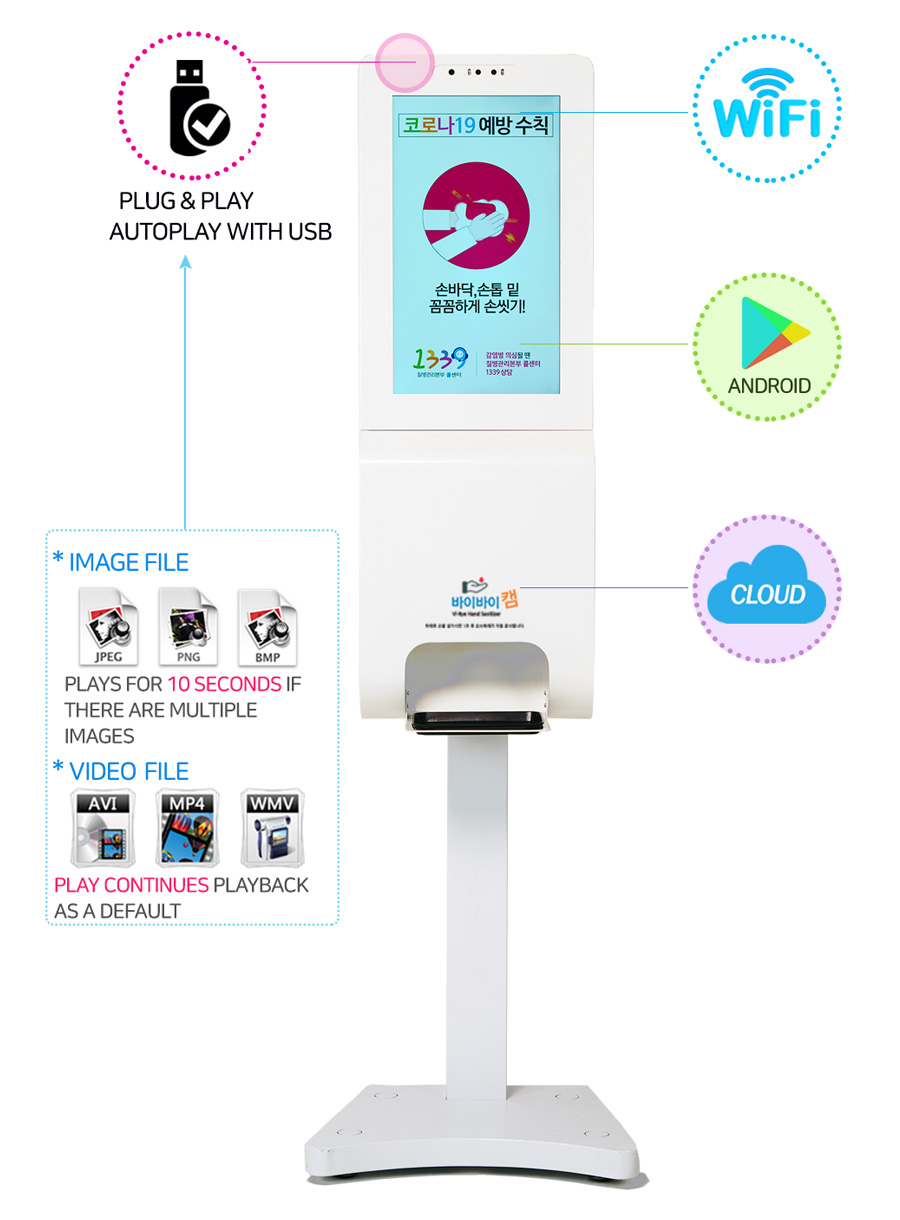

Easy Control System

(USB Type)

  • Plug & Play - for exposing advertising such as imanges and videos
  • Timer - On/Off
손쉬운 시스템 컨트롤

Information

제품 정보

Specification

System
바이바이캠의 시스템 스펙을 안내하며, WiFi, CPU, RAM, INTERNAL MEMORY, INTERFACE, BLUETOOTH, operation system 항목으로 구성되어있습니다.
WiFi 150M WiFi 802.11 B/G/N included
CPU Quad core cortex A17 , 1.8G
RAM 2gb
INTERNAL MEMORY 8gb
INTERFACE USB 2.0 X 4, RJ45 X 1, Audio X 1
BLUETOOTH Bluetooth 4.0
OPERATION SYSTEM Android 7.1
Display
바이바이캠의 디스플레이 스펙을 안내하며, Screen, Resolution, Active area, Viewing angles, Contrast ratio, Luminance, Display mode, Aspect Ratio 항목으로 구성되어있습니다.
Screen 21.5" LCD Full HD screen, LED-backlit
Resolution 1920 * 1080
Active area 477(H) X 269(V) mm
Viewing angles 178 / 178
Contrast ratio 1500 : 1
Luminance 250cdm
Display IPS
Aspect Ratio 16 : 9
Disinfectant capacity
바이바이캠의 소독제 용량 스펙을 안내하며, 기본형 항목으로 구성되어있습니다.
Basic 3L

The warranty period is 1 year.

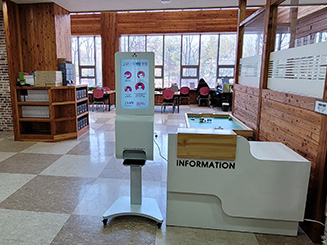

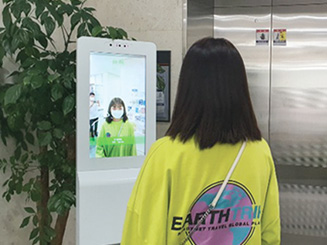

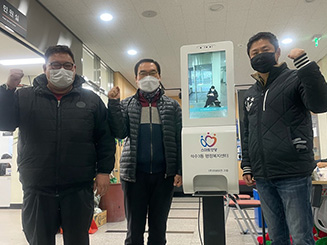

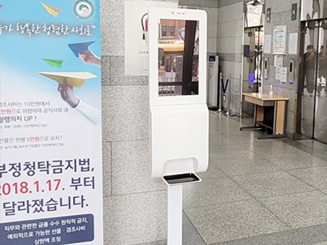

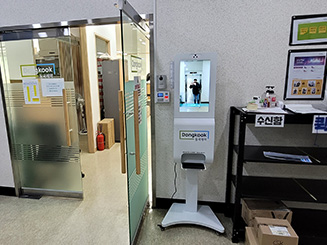

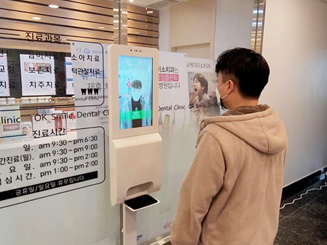

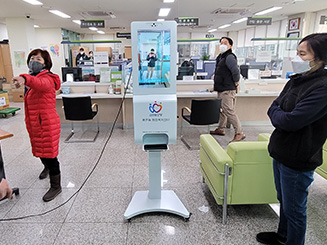

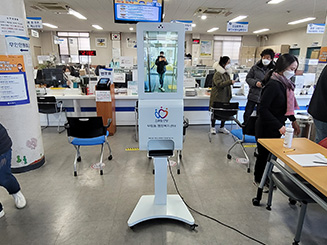

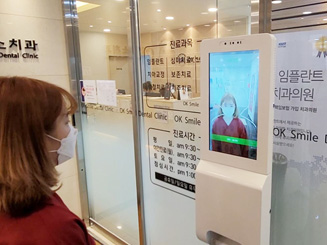

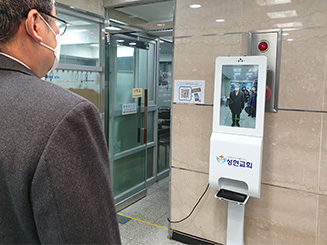

Installation Reference

설치사례1
설치사례2
설치사례3
설치사례4
설치사례5
설치사례6
설치사례7
설치사례8
설치사례9
설치사례10
