Commercial

Smart Hand Disinfector

Commercial

21.5" Smart Hand Disinfector

Non-face-to-face guidance & quarantine in daily life
21.5" Smart Hand Disinfector

  • With contactless automatic sensor function suitable for hygiene
  • Easy to maintain, easy to use environment
  • An effective imaging system for information delivery
  • Quick updates over the WIFI network
  • Easy system control

Special Features

FULL HD
Automatic sensor
injection method
Remote control
Built-in speaker
WiFi
Plug & play

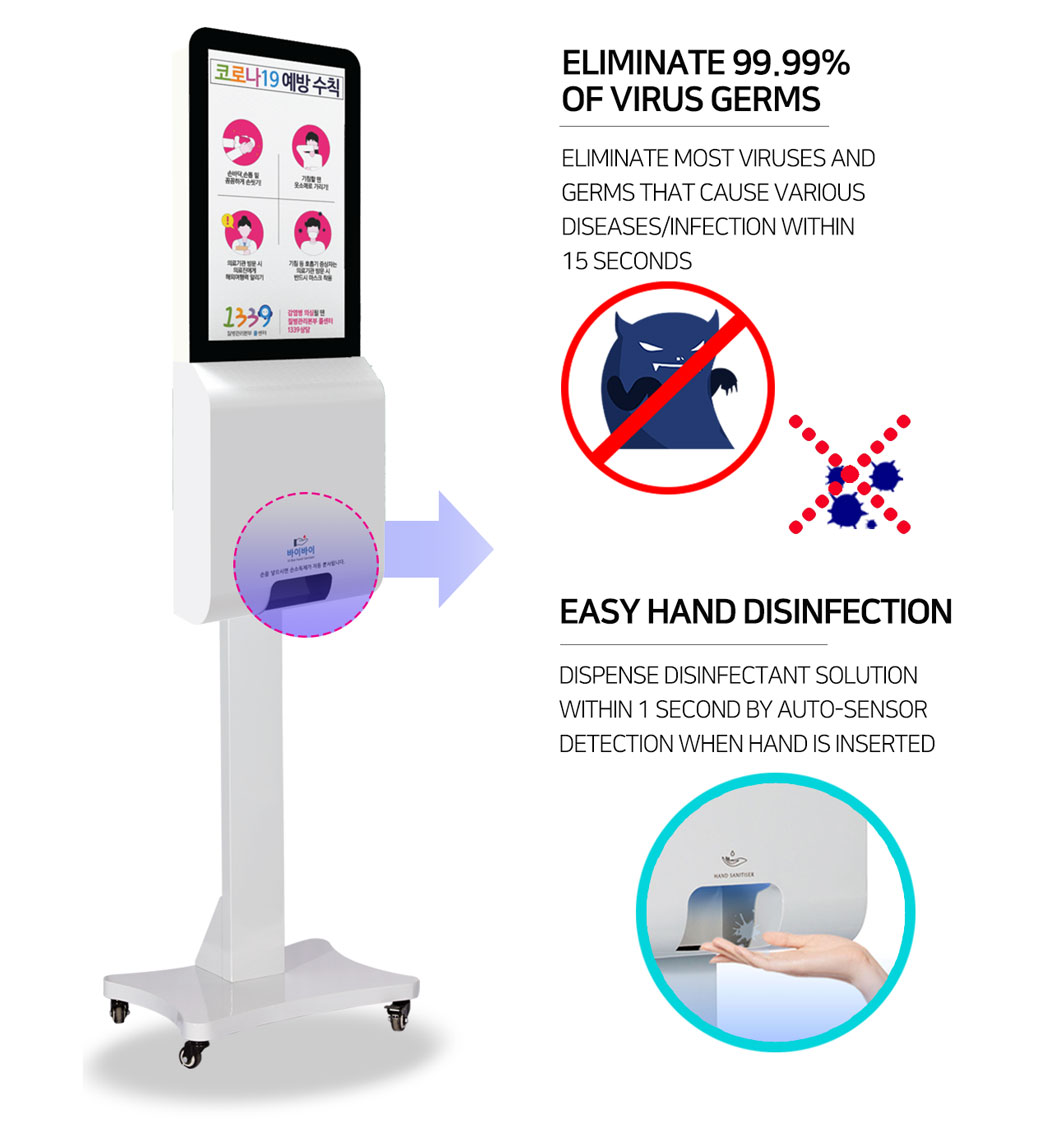

01. With contactless automatic sensor function suitable for hygiene

  • Eliminate 99.99% of virus germs - Eliminate most viruses and germs that cause various diseases/infection within 15 seconds
  • Easy hand disinfection - Dispense disinfectant solution within 1 second by auto-sensor detection when hand is inserted
바이러스 세균을 99.99% 제거 각종 질병/감염의 원인이 되는 대부분의 바이러스와 세균을 15초 이내 완벽제거 / 간편하게 손 소독 손을 넣으면 자동센서 감지로 1초 내 소독액 분사

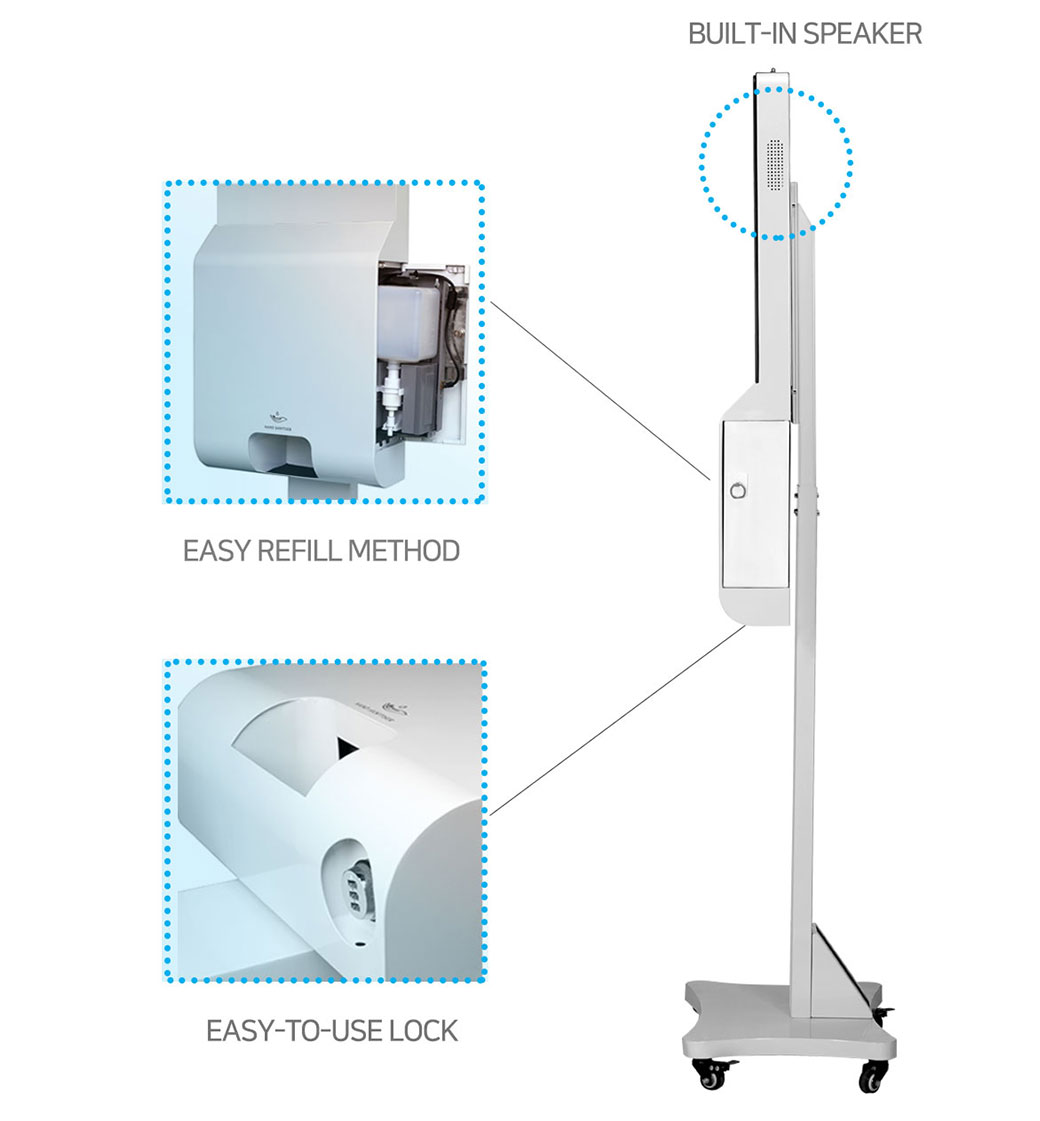

02. Simple and convenient refill & locking

  • Easy refill method (Default 1L)
  • Easy-to-use lock
built-in speaker / Easy refill method (Default 1L) / Easy-to-use lock

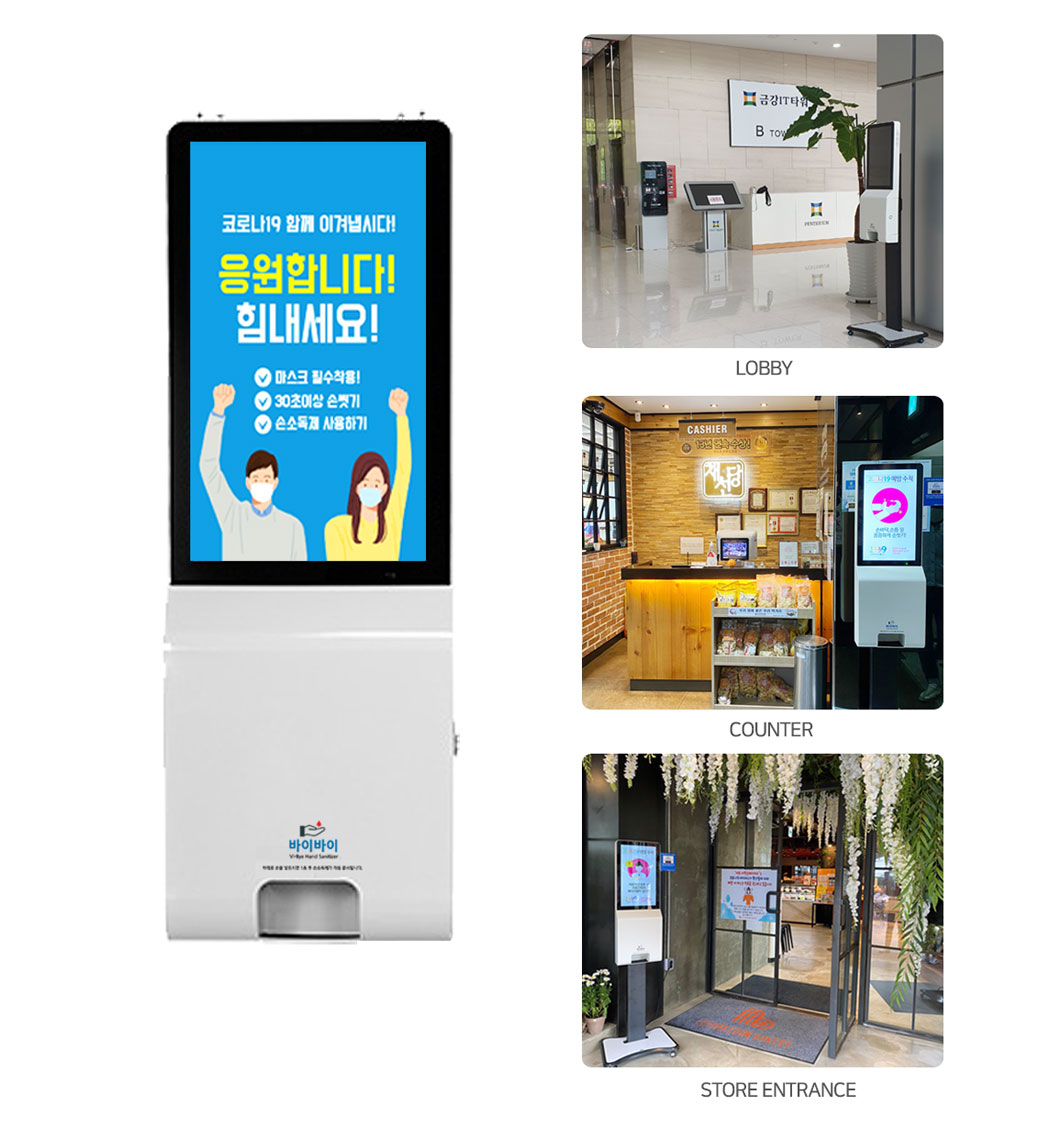

03. Excellent non-face-to-face information delivery when using an automatic hand sanitizer

  • Lobby, Counter, Store entrance, An exhibition hall/exhibition, Movie theater, Public/bank institutions, Shopping mall, Terminal, Elevator, Kids Facility, Hands-on store
  • Kiosk suitable for multi-use facilities
Medical facilities, Shopping mall, Fair, A large restaurant

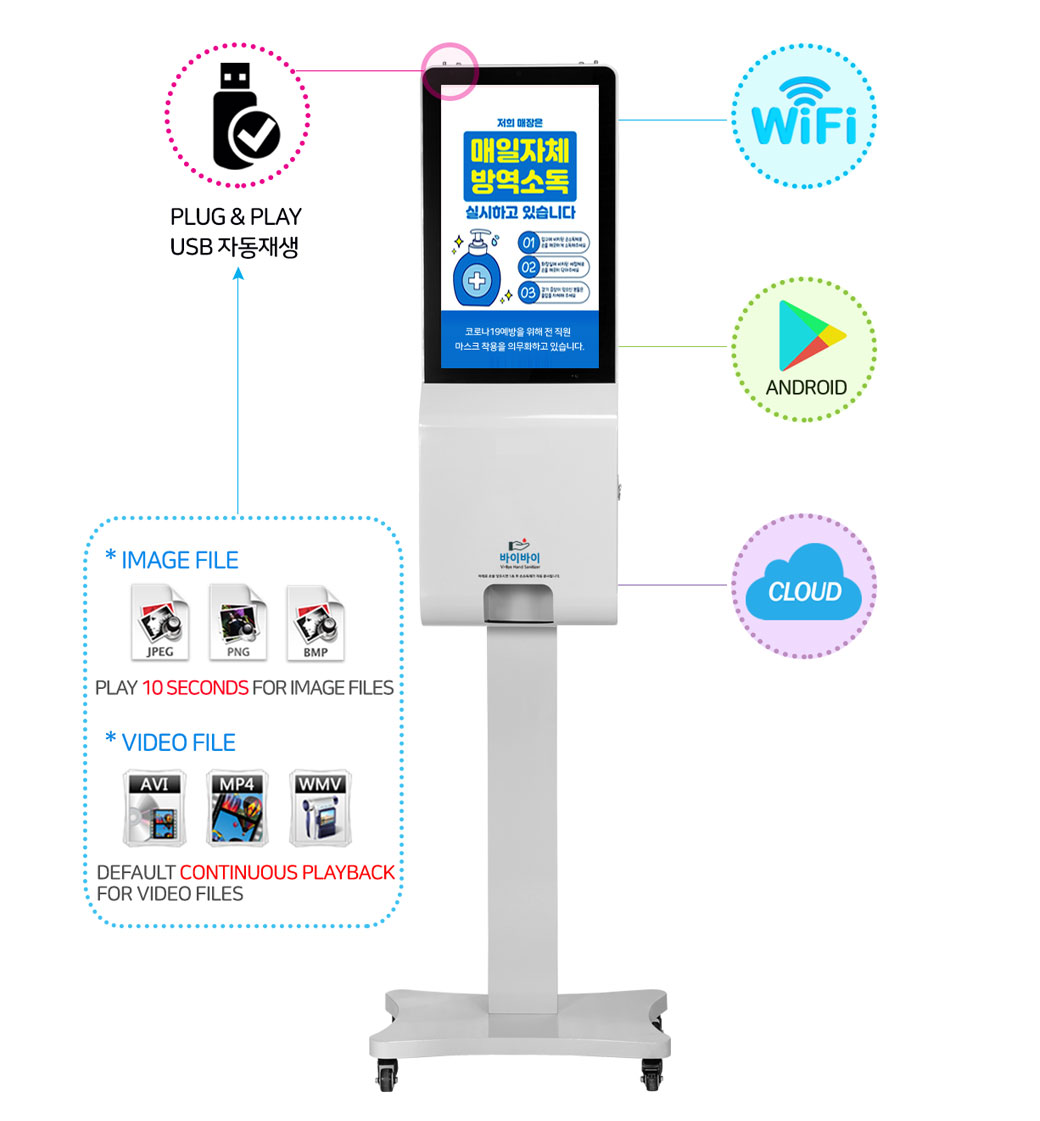

04. Quick updates and multi-machine support

  • Plug & Play / Android / Cloud (separate door)
  PLUG & PLAY USB 자동재생  /  * Image file : Play 10 seconds for image files  /  * Video file : Default continuous playback for video files

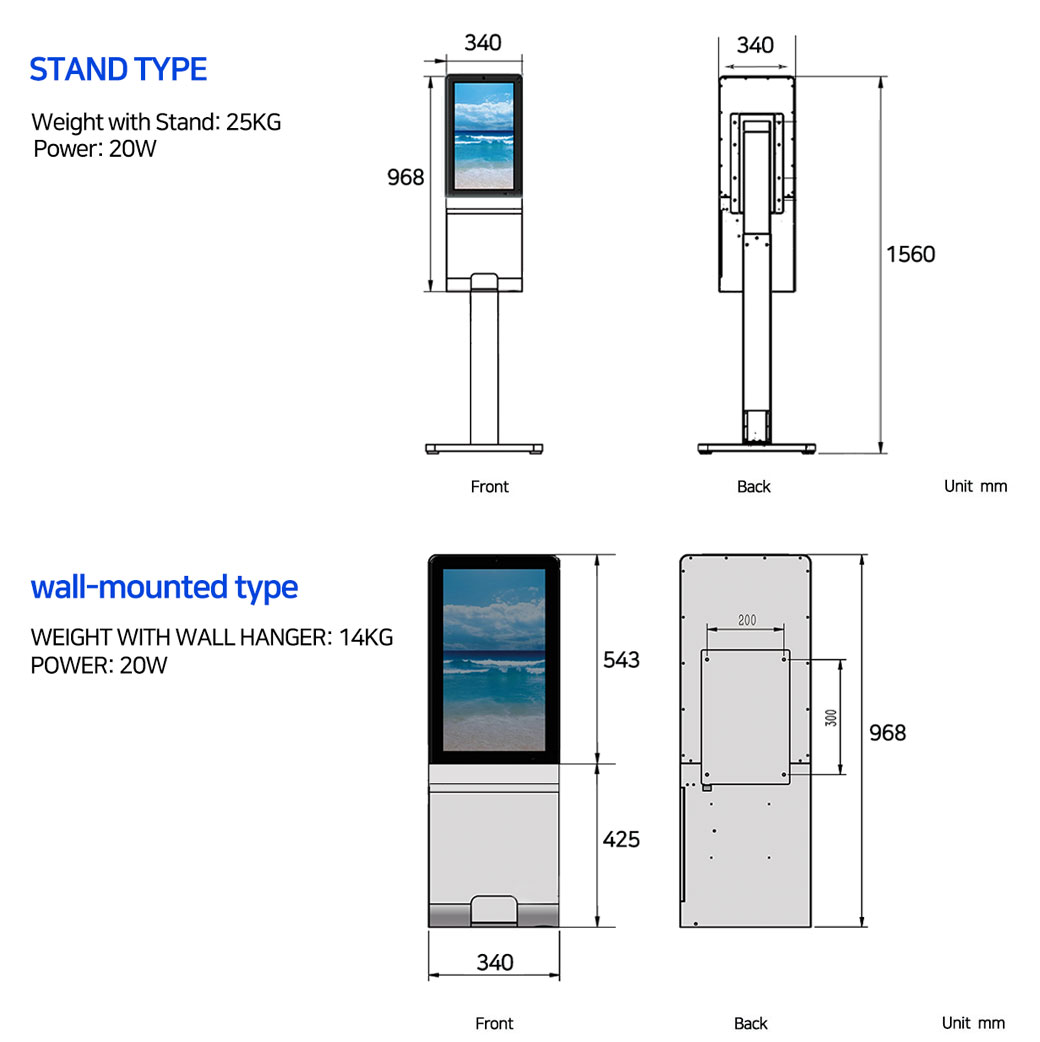

Information

  • Stand type : Weight with Stand: 25KG, Power: 20W
  • Wall-mounted type : Weight with Wall hanger: 14KG, Power: 20W
Stand type : Weight with Stand: 25KG, Power: 20W / Wall-mounted type :  Weight with Wall hanger: 14KG, Power: 20W

Specification

System
스마트 손 소독기의 시스템 스펙을 안내하며, WiFi, CPU, RAM, INTERNAL MEMORY, INTERFACE, BLUETOOTH, operation system 항목으로 구성되어있습니다.
WiFi 150M WiFi 802.11 B/G/N included
CPU Quad core cortex A17, 1.8G, RK3288
RAM 2gb
INTERNAL MEMORY 8gb
INTERFACE USB 2.0 X 4, RJ45 X 1, Audio X 1, HDMI output X 1
BLUETOOTH Bluetooth 4.0
OPERATION SYSTEM Android 7.1
Display
스마트 손 소독기의 디스플레이 스펙을 안내하며, Screen, Resolution, Active area, Viewing angles, Contrast ratio, Luminance, Display mode, Aspect Ratio 항목으로 구성되어있습니다.
Screen 21.5" LCD Full HD screen, LED-backlit
Resolution 1920 * 1080
Active area 477(H) X 269(V) mm
Viewing angles 89/89H), 89/89(V)
Contrast ratio 1000 : 1
Luminance 250cdm
Display mode Normal Black, IPS
Aspect Ratio 16 : 9
Capacity
스마트 손 소독기의 소독제 용량 스펙을 안내하며, 기본형, 옵션 항목으로 구성되어있습니다.
Basic 1L

Installation Reference

설치사례1
설치사례2
설치사례3
설치사례4
설치사례5
설치사례6
설치사례7
설치사례8
설치사례9
설치사례10
설치사례11
