Digital Signage
DID·비디오월
DID·Video Wall
삼성 / LG 정품 패널 사용

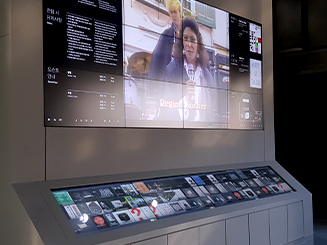

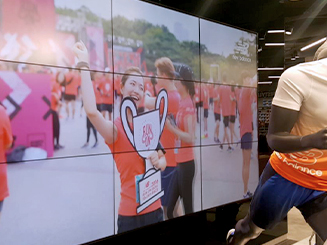

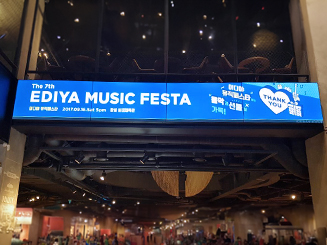

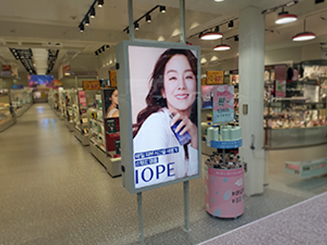

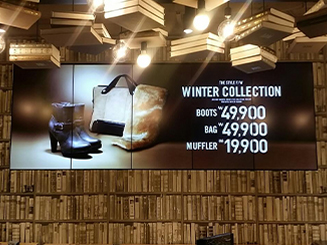

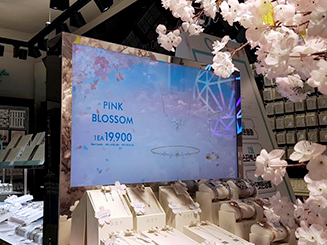

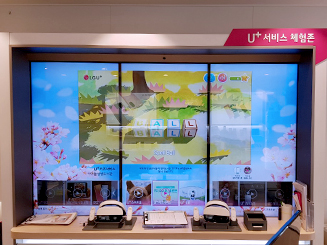

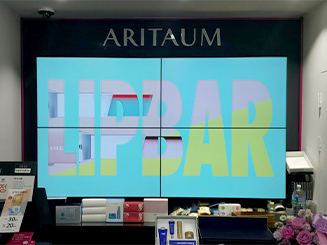

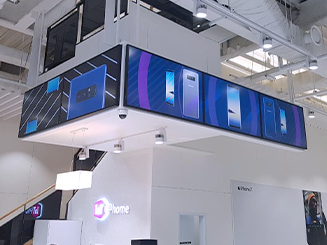

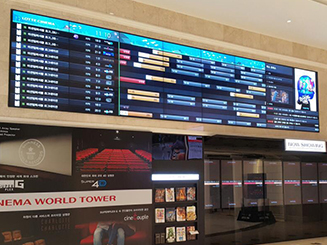

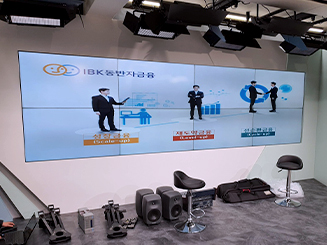

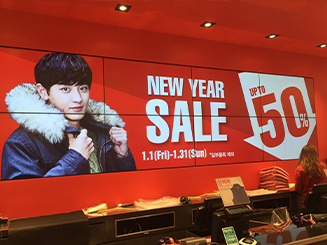

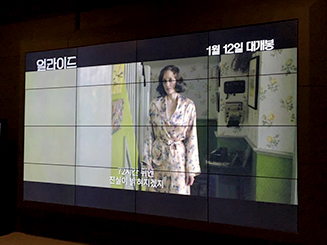

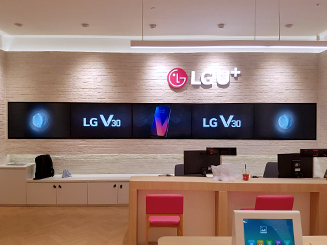

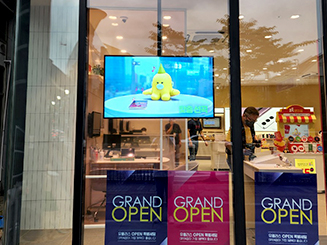

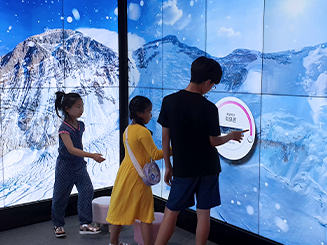

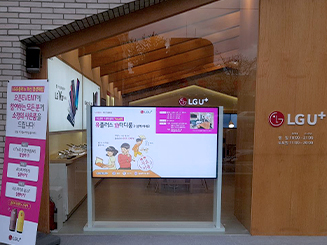

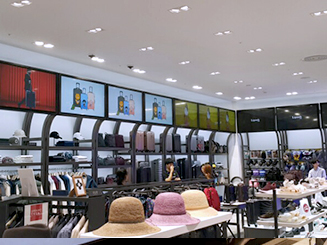

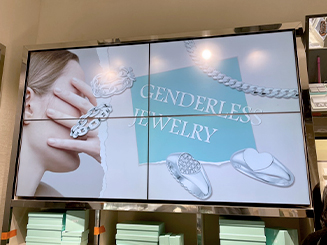

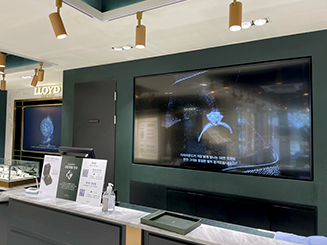

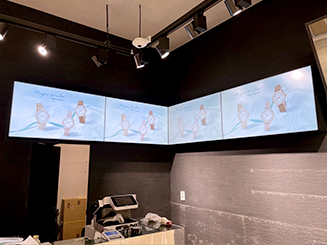

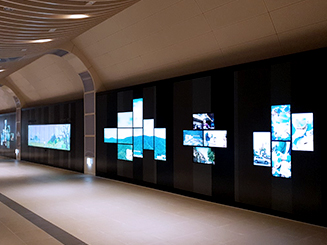

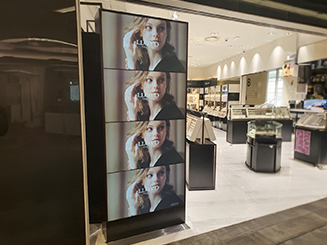

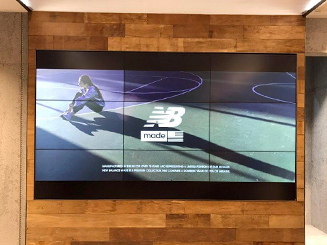

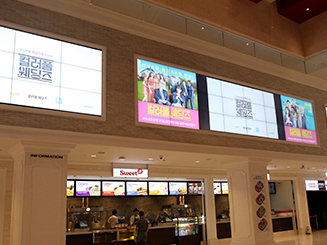

설치사례
특장점
제품특징
베젤과 베젤사이 간격
기존 55LV77A 대비 약 49% 감소된 슈퍼 초슬림 베젤로 B to B 1.8mm로 제공됩니다.
다양한 장소에 활용
리테일, 코스메틱, 패션 업종은 물론 방송국이나 군부대의 관제센터에서도 다양한 용도로 활용되고 있습니다.
가볍고, 슬림해진 디스플레이
가벼운 무게와 슬림한 두께로 사업장의 고급스러운 인테리어 효과는 물론 편리한 설치와 유지 관리까지 가능합니다.
소프트웨어 설명
스펙
Model Name | AMM-L46 (1.8mm) | ||
---|---|---|---|
Picture | |||
Display Panel | Screen Size | 46" / 116cm | |
Active Display Area (㎜) | 1021.08(H) x 572.67(V) | ||
Number of Pixels | 1920 x 1080 (WUXGA) | ||
LIGHT Source | D-LED | ||
Display Colors | 16.7 Million colors | ||
Brightness (cd/㎡)/(typ) | 500 | ||
Contrast Ratio | 3500:1 | ||
Response Time (ms, GTG) | 8 | ||
Viewing Angle (H˚/V˚) | 178°/178° | ||
Bezel Size (㎜) | 1.8 | ||
Weight (㎏) | 17 kg | ||
Life Time | 50,000Hr | ||
Resolution | Monitor Timming(max) | 1920 x 1080 | |
DTV Timming(max) | 1080p | ||
Connectivity & Control |
Input | VGA (15pin D-Sub) | 1 |
HDMI | 3 | ||
DVI | |||
Composite (BNC) | |||
Component (BNC) | |||
PC Audio | 1 | ||
Component Audio | |||
Composite Audio | |||
RS232C | 1 | ||
Output | VGA (15pin D-Sub) | 1 | |
HDMI (HDCP Not Supported) | |||
Composite (BNC) | |||
Component (BNC) | |||
RS-232C | 1 | ||
Speaker (Ready) | |||
Multi-Screen Function (Loop) | HDMI / DP | ||
Power Requirement |
Input Voltage | 100 - 240VAC | |
power saving (typ) (W) | 3.5W | ||
Consumption (typ) (W) | 5.5W | ||
Mechanical | Dimension( mm) | Set (W x H x L) (㎜) | 1024 x 578.6 x 98.5 |
Bezel Size (㎜) | 1.8 | ||
Weight (kg) (Without Glass) |
Set Weight (㎏) | 26 kg(MAX) | |
OSD Language | 10 Lang | ||
Temperature | 0℃ - 40℃ | ||
Humidity | 20% - 80% | ||
Wall Mounting Hole (W x H ㎜) | 600 x 400 |
Model Name | AMM-L49 (1.8mm) | ||
---|---|---|---|
Picture | |||
Display Panel | Screen Size | 49" / 125cm | |
Active Display Area (㎜) | 1075.6(H) x 605.8(V) | ||
Number of Pixels | 1920 x 1080 (WUXGA) | ||
LIGHT Source | D-LED | ||
Display Colors | 16.7 Million colors | ||
Brightness (cd/㎡)/(typ) | 500 | ||
Contrast Ratio | 3500:1 | ||
Response Time (ms, GTG) | 8 | ||
Viewing Angle (H˚/V˚) | 178°/178° | ||
Bezel Size (㎜) | 1.8 | ||
Weight (㎏) | 18.5 kg | ||
Life Time | 50,000Hr | ||
Resolution | Monitor Timming(max) | 1920 x 1080 | |
DTV Timming(max) | 1080p | ||
Connectivity & Control |
Input | VGA (15pin D-Sub) | 1 |
HDMI | 3 | ||
DVI | |||
Composite (BNC) | |||
Component (BNC) | |||
PC Audio | 1 | ||
Component Audio | |||
Composite Audio | |||
RS232C | 1 | ||
Output | VGA (15pin D-Sub) | 1 | |
HDMI (HDCP Not Supported) | |||
Composite (BNC) | |||
Component (BNC) | |||
RS-232C | 1 | ||
Speaker (Ready) | |||
Multi-Screen Function (Loop) | HDMI / DP | ||
Power Requirement |
Input Voltage | 100 - 240VAC | |
power saving (typ) (W) | 3.5W | ||
Consumption (typ) (W) | 5.5W | ||
Mechanical | Dimension( mm) | Set (W x H x L) (㎜) | 1024 x 578.6 x 98.5 |
Bezel Size (㎜) | 1.8 | ||
Weight (kg) (Without Glass) |
Set Weight (㎏) | 31.5 kg(MAX) | |
OSD Language | 10 Lang | ||
Temperature | 0℃ - 40℃ | ||
Humidity | 20% - 80% | ||
Wall Mounting Hole (W x H ㎜) | 600 x 400 |
Model Name | AMM-L55 (1.8mm) | ||
---|---|---|---|
Picture | |||
Display Panel | Screen Size | 55" / 138.7cm | |
Active Display Area (㎜) | 1213.6(H) x 684.4(V) | ||
Number of Pixels | 1920 x 1080 (WUXGA) | ||
LIGHT Source | D-LED | ||
Display Colors | 16.7 Million colors | ||
Brightness (cd/㎡)/(typ) | 500 | ||
Contrast Ratio | 3500:1 | ||
Response Time (ms, GTG) | 8 | ||
Viewing Angle (H˚/V˚) | 178°/178° | ||
Bezel Size (㎜) | 1.8 | ||
Weight (㎏) | 20.5 kg | ||
Life Time | 50,000Hr | ||
Resolution | Monitor Timming(max) | 1920 x 1080 | |
DTV Timming(max) | 1080p | ||
Connectivity & Control |
Input | VGA (15pin D-Sub) | 1 |
HDMI | 3 | ||
DVI | |||
Composite (BNC) | |||
Component (BNC) | |||
PC Audio | 1 | ||
Component Audio | |||
Composite Audio | |||
RS232C | 1 | ||
Output | VGA (15pin D-Sub) | 1 | |
HDMI (HDCP Not Supported) | |||
Composite (BNC) | |||
Component (BNC) | |||
RS-232C | 1 | ||
Speaker (Ready) | |||
Multi-Screen Function (Loop) | HDMI / DP | ||
Power Requirement |
Input Voltage | 100 - 240VAC | |
power saving (typ) (W) | 3.5W | ||
Consumption (typ) (W) | 5.5W | ||
Mechanical | Dimension( mm) | Set (W x H x L) (㎜) | 1213.5 x 684.3 x 98.3 |
Bezel Size (㎜) | 1.8 | ||
Weight (kg) (Without Glass) |
Set Weight (㎏) | 35.05 kg(MAX) | |
OSD Language | 10 Lang | ||
Temperature | 0℃ - 40℃ | ||
Humidity | 20% - 80% | ||
Wall Mounting Hole (W x H ㎜) | 600 x 400 |
